Product Name: |
MULTI FUNCTION TESTER |
| Product Code: |
YMF 5000 |
| Description: |
Multifunction 5-1 Tester
Easy to use
New Anti-Trip Technology loop for full no trip Loop testing of RCD of all types. Low susceptibility of RCD uplift and noise interference
250/500/1000V insulation test with auto discharge
Auto ranging continuity
RCD auto test mode
RCD Ramp test
Protected against phase to phase connection
IP54
|
| Category: |
|
| |
|
|
Product Name: |

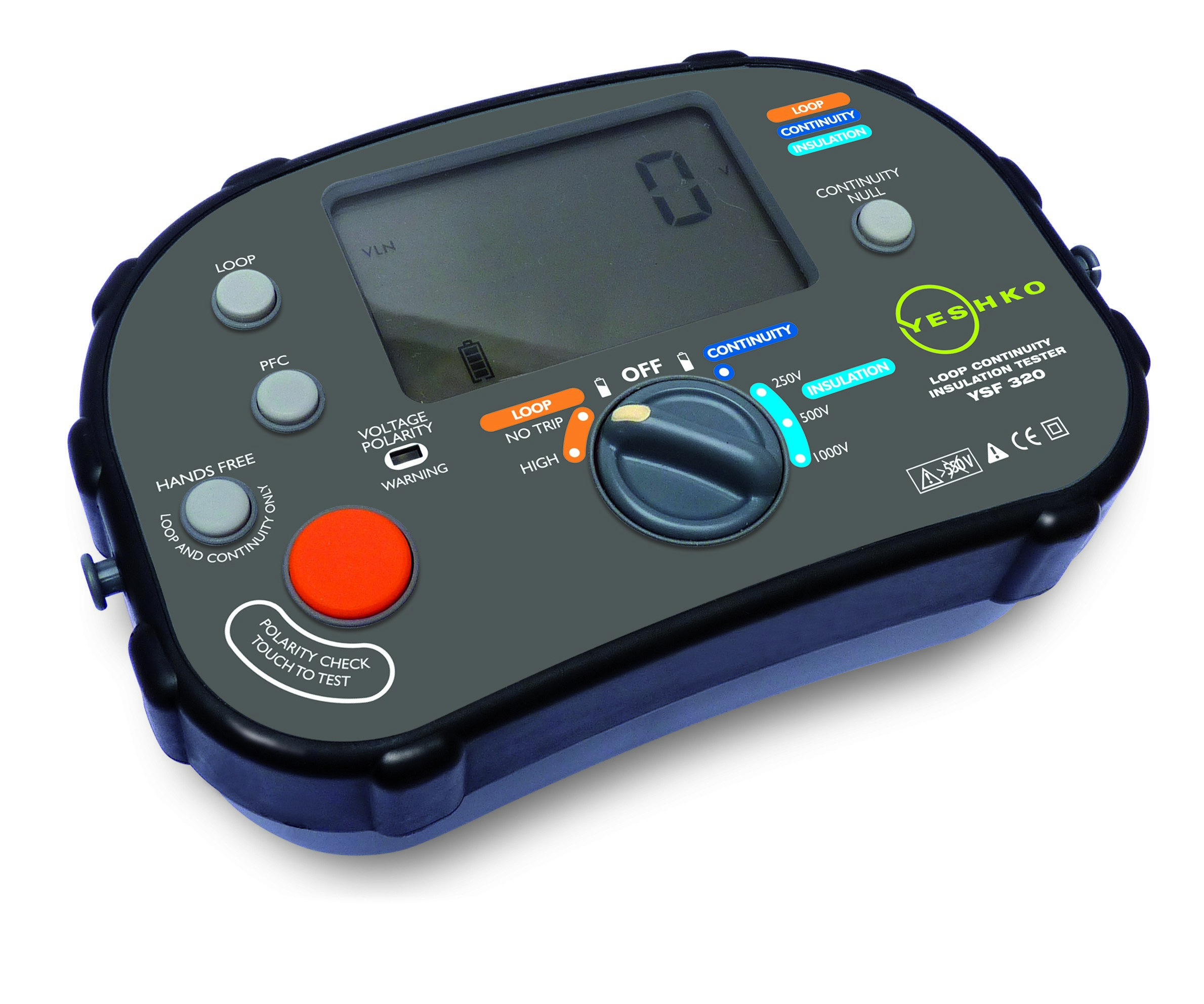

LOOP / CONTINUITY / INSULATION TESTER |
| Product Code: |
YSF 320 |
| Description: |
Continuity, Insulation, Loop/tests in a single unit
250/500/1000V insulation tests
New Anti-Trip Technology loop for full no trip Loop testing of RCD of all types. Low susceptibility of RCD uplift and noise interference
Designed for BS EN 61010-1/IEC 1010-1 Category III
IP54
|
| Category: |
|
| |
|
|
Product Name: |

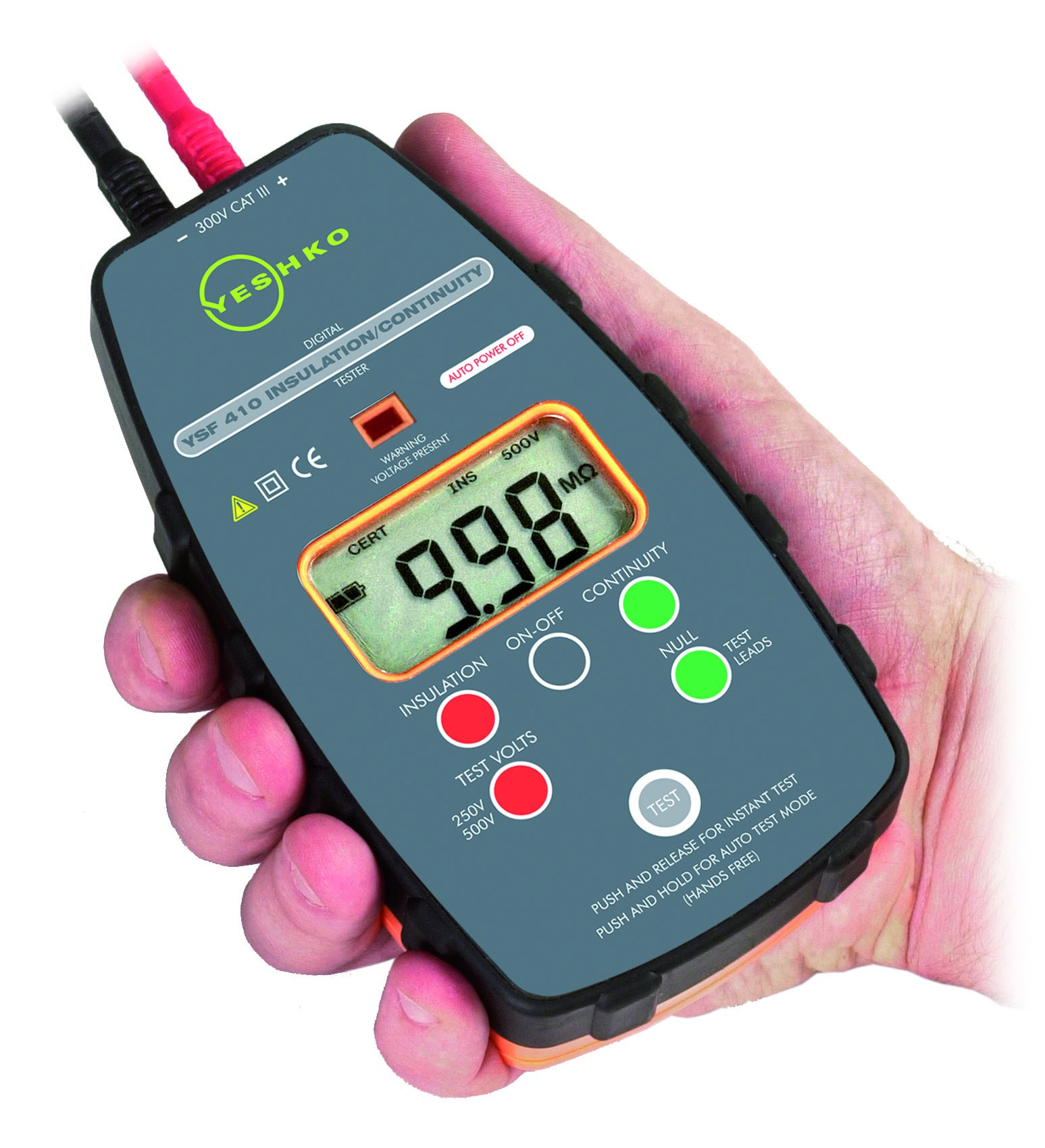

CONTINUITY/INSULATION TESTER |
| Product Code: |
YSF 410 |
| Description: |
2 way-250 and 500 volt insulation plus full 200mA continuity test
Continuity measurement up to 10K£[resolution 0.01£[
Uses only 4 x AA alkaline batteries giving over 5,000 tests at 500V
Supplied complete with quality test leads, carrying case and manual
Fully protected against accidental live voltage contact up to 600V AC
Null function to eliminate lead resistance up to 2£[
Intelligent auto shut off to preserve battery life
|
| Category: |
|
| |
|
|
Product Name: |

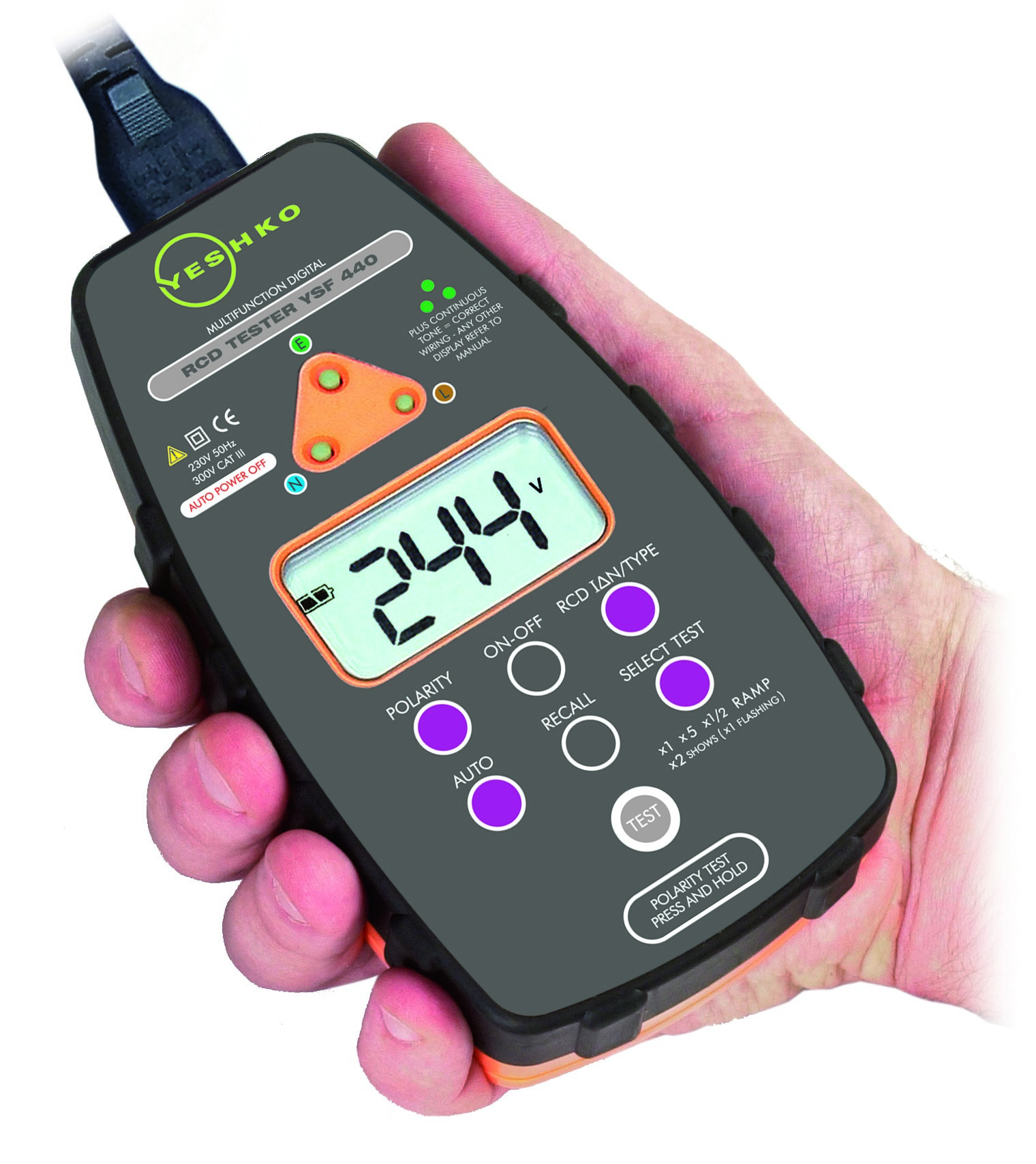

RCD TESTER |
| Product Code: |
YSF 440 |
| Description: |
Easy to use with full auto test including result recall
Test AC (general purpose) 30mA, 100mA and 500mA RCDs
Test ACS (selective) 100mA and 300mA RCDs
Test x ?, x1, x5 plus x 2
Full Ramp test to check what current point the RCD trips
Built-in full socket wiring check
Accurate mains voltage measurement to latest BS 7697, HS 472 S1
Polarity test gives ultimate overall system safety check
|
| Category: |
|
| |
|
|
Product Name: |

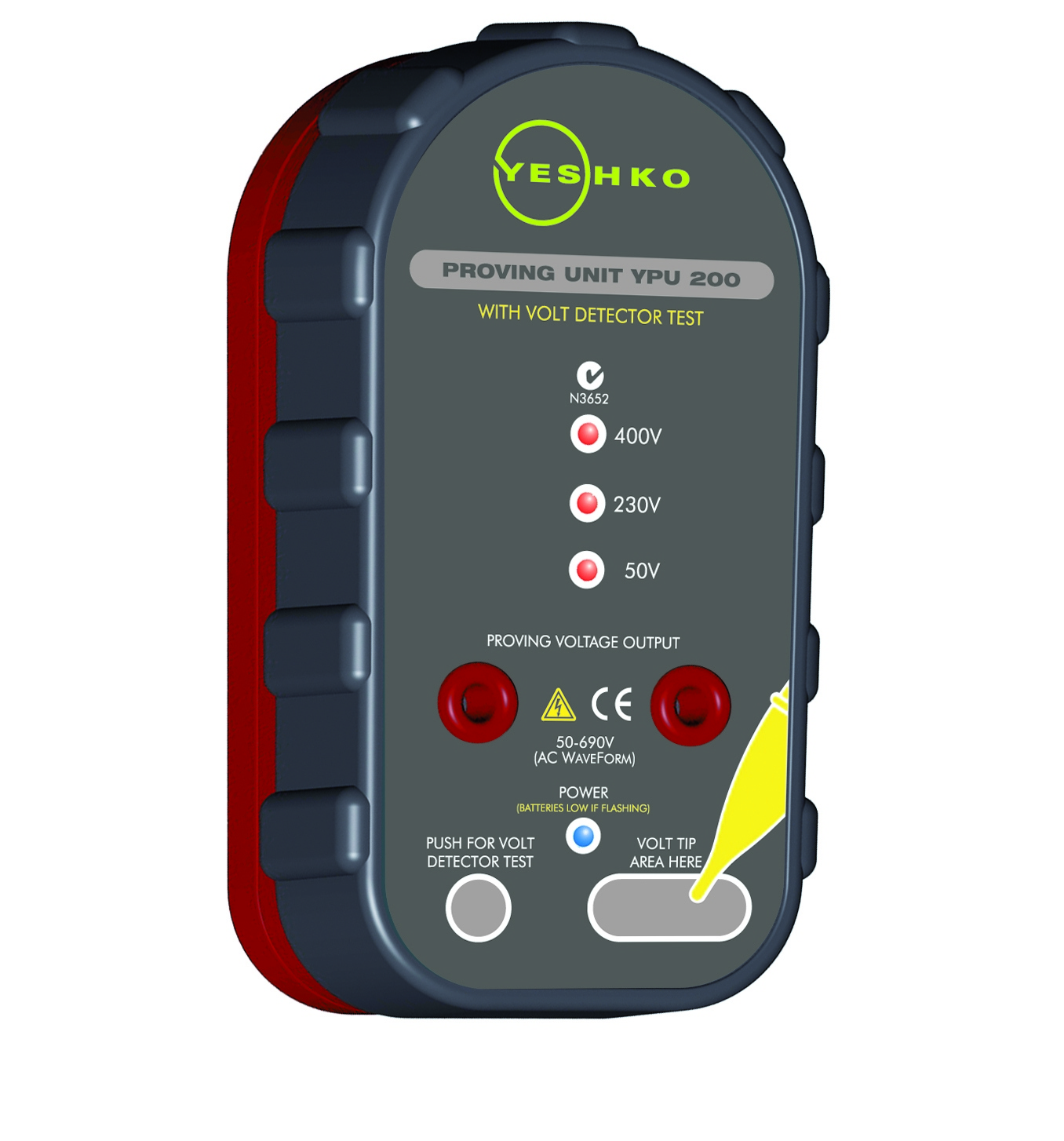

PROVING UNIT |
| Product Code: |
YPU 200 |
| Description: |
Test two pole volt testers including multimeters and test lamps
Tests non- contact voltsticks
The first proving unit to generate AC waveform for a true test
Step voltage LED¡¦s indicate voltage being generated 50-100-230-400-690V
|
| Category: |
|
| |
|
|
Product Name: |

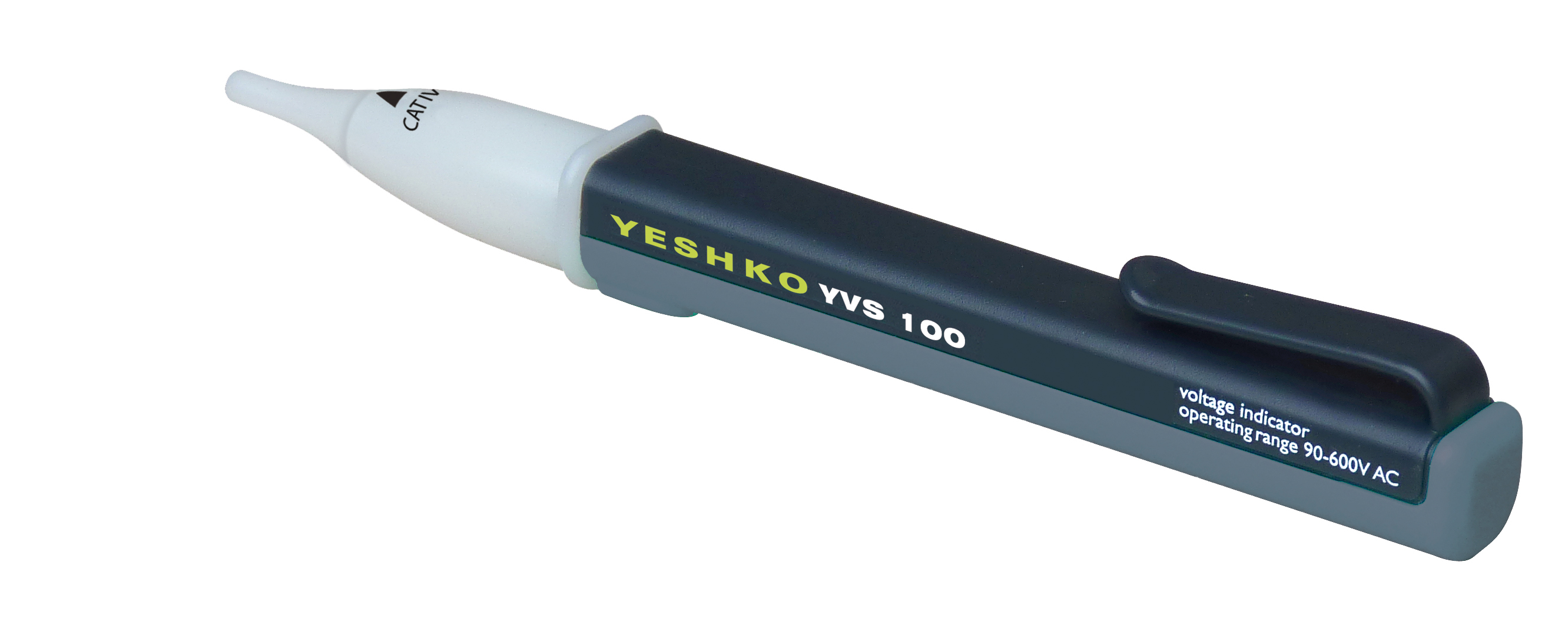

VOLTAGE TESTER |
| Product Code: |
YVS 100 |
| Description: |
Clearly detects 90-600 volts AC without metal contact
Tip glows red when voltage is detected
Pocket-size for handy use anywhere
|
| Category: |
|
| |
|
|
Product Name: |

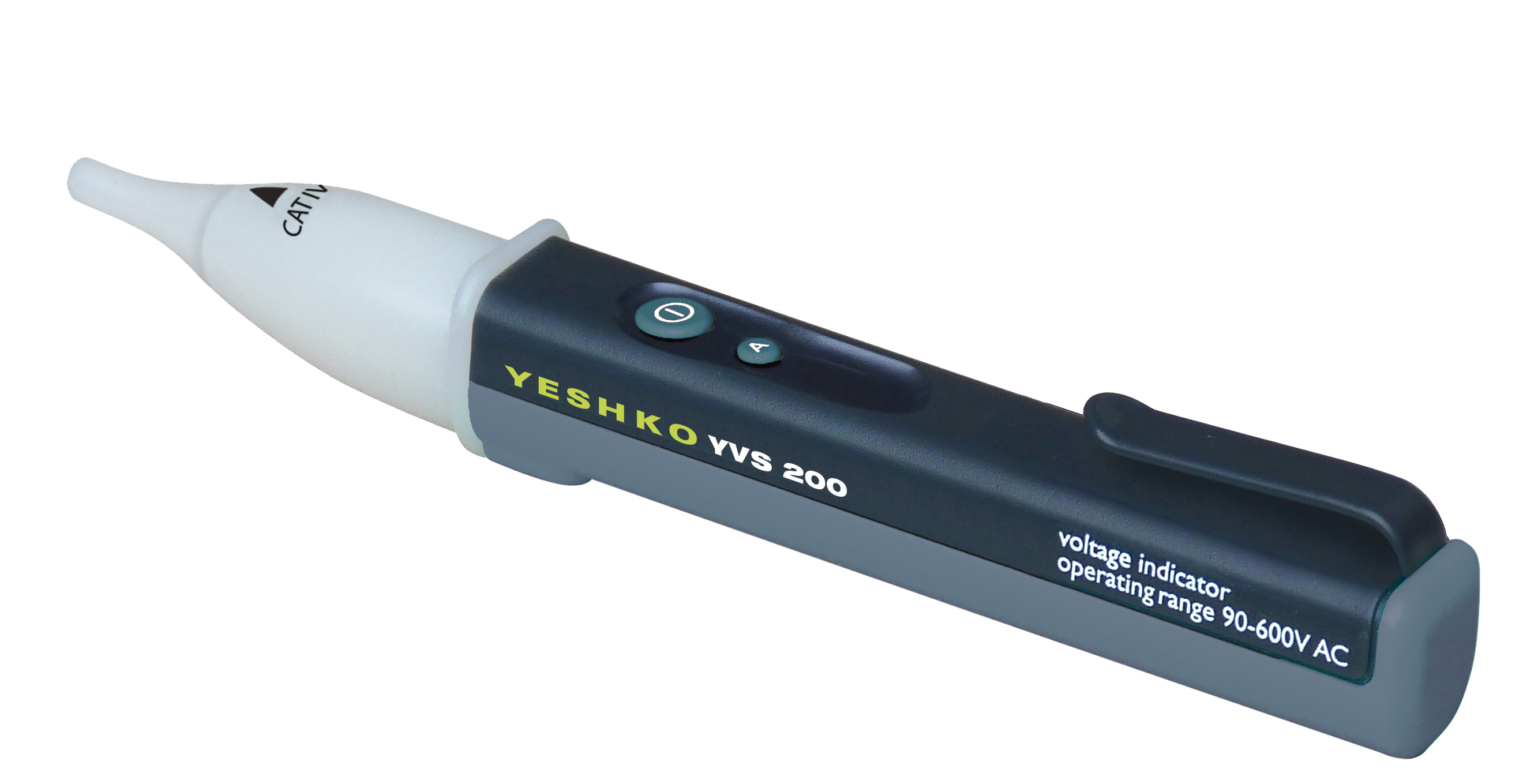

VOLTAGE TESTER |
| Product Code: |
YVS 200 |
| Description: |
Clearly detects 90-600 volts AC without metal contact
Two colour LED¡¦s ¡V Green for correct working and Red for Voltage detection
Two tone buzzer, one for correct working and one for voltage detection
Pocket-size for handy use anywhere
|
| Category: |
|
| |
|
|
Product Name: |

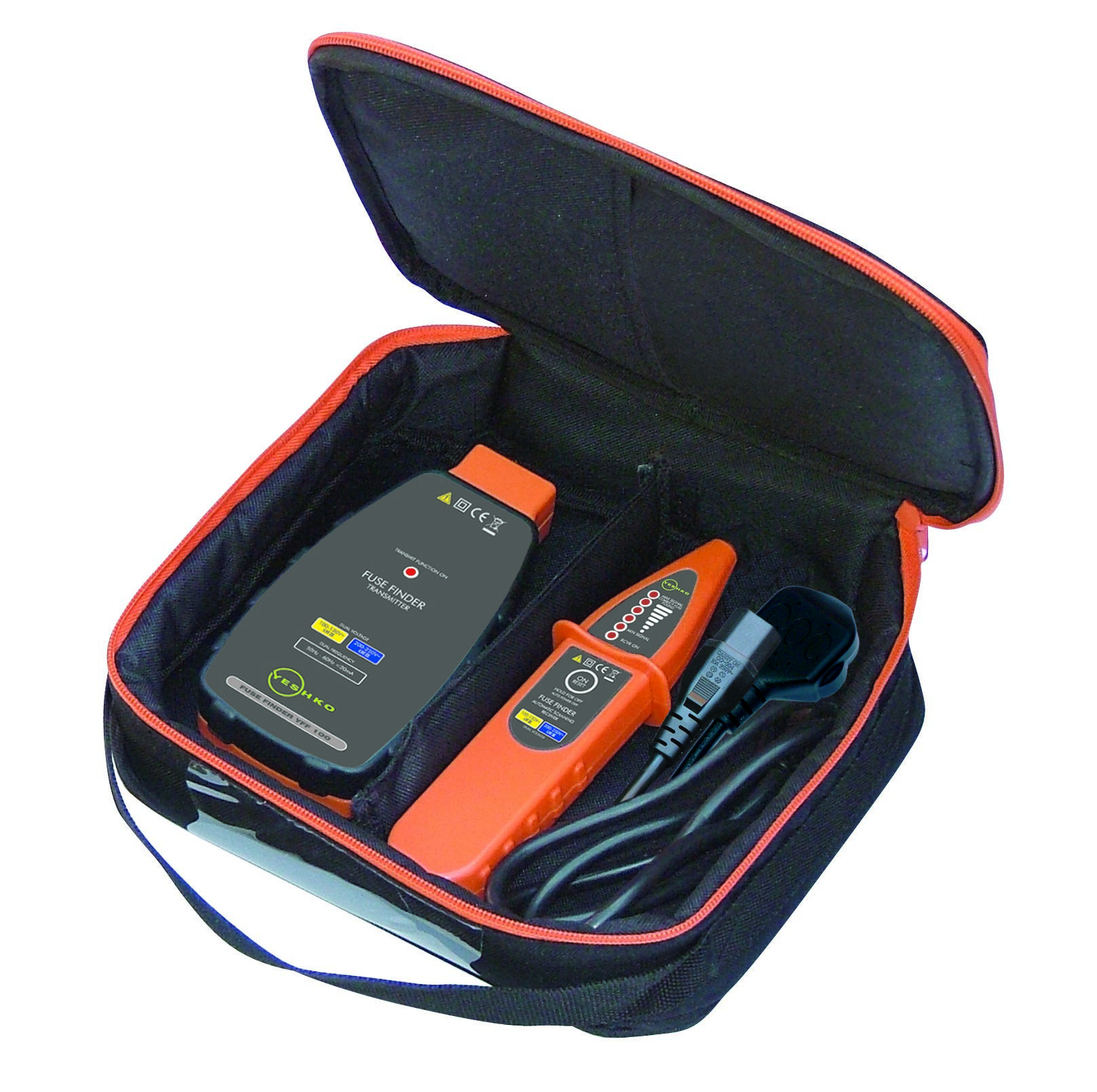

FUSE FINDER |
| Product Code: |
YFF 100 |
| Description: |
Two indications of correct fuse found ¡V audible and bar graph
|
| Category: |
|
| |
|
|
Product Name: |

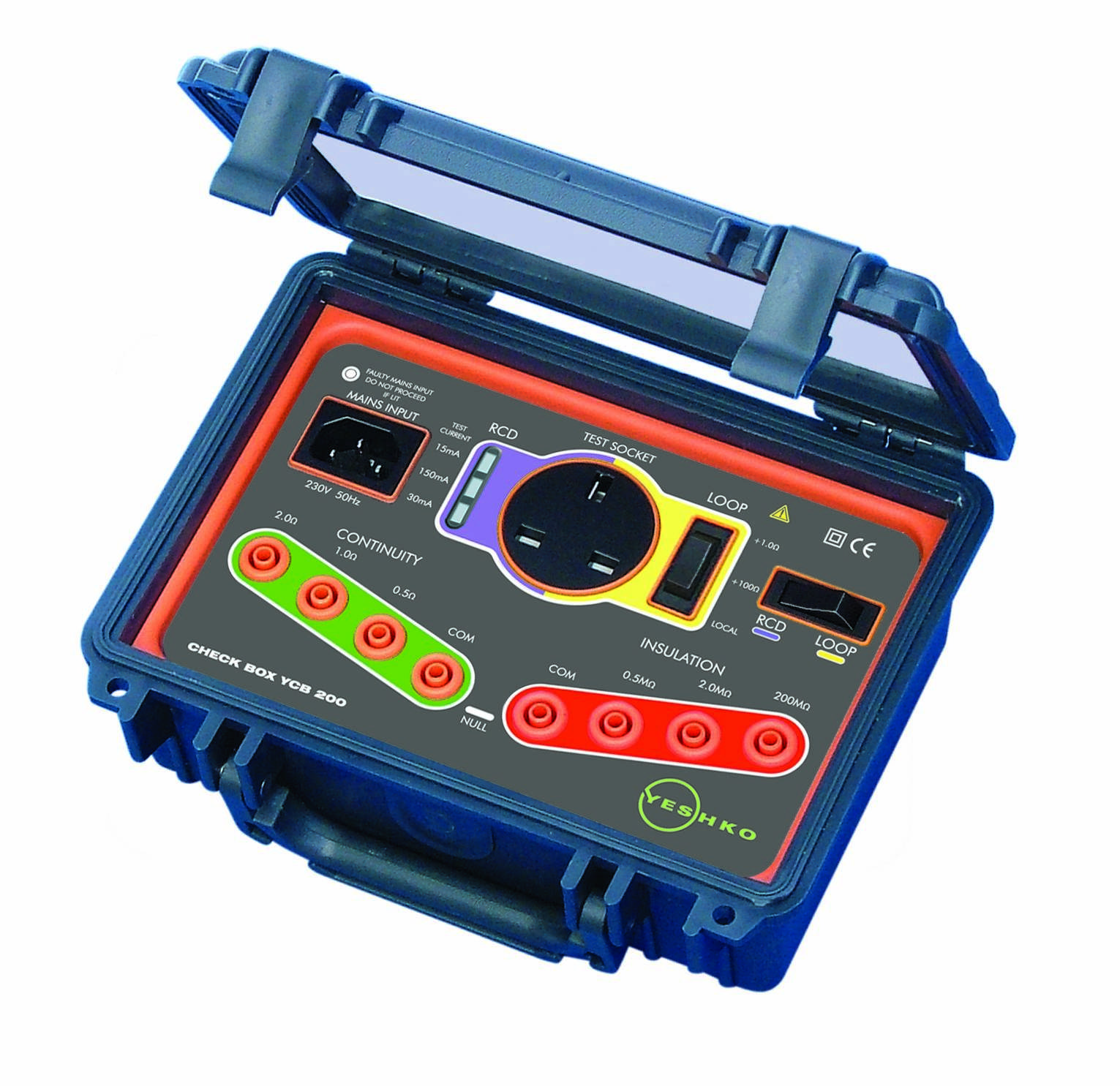

CHECK BOX |
| Product Code: |
YCB 200 |
| Description: |
Continually validate your instruments through regular self-calibration checks
Reduces expensive calibration costs
Null facility to remove lead resistance
Easy to use
|
| Category: |
|
| |
|
|
Product Name: |

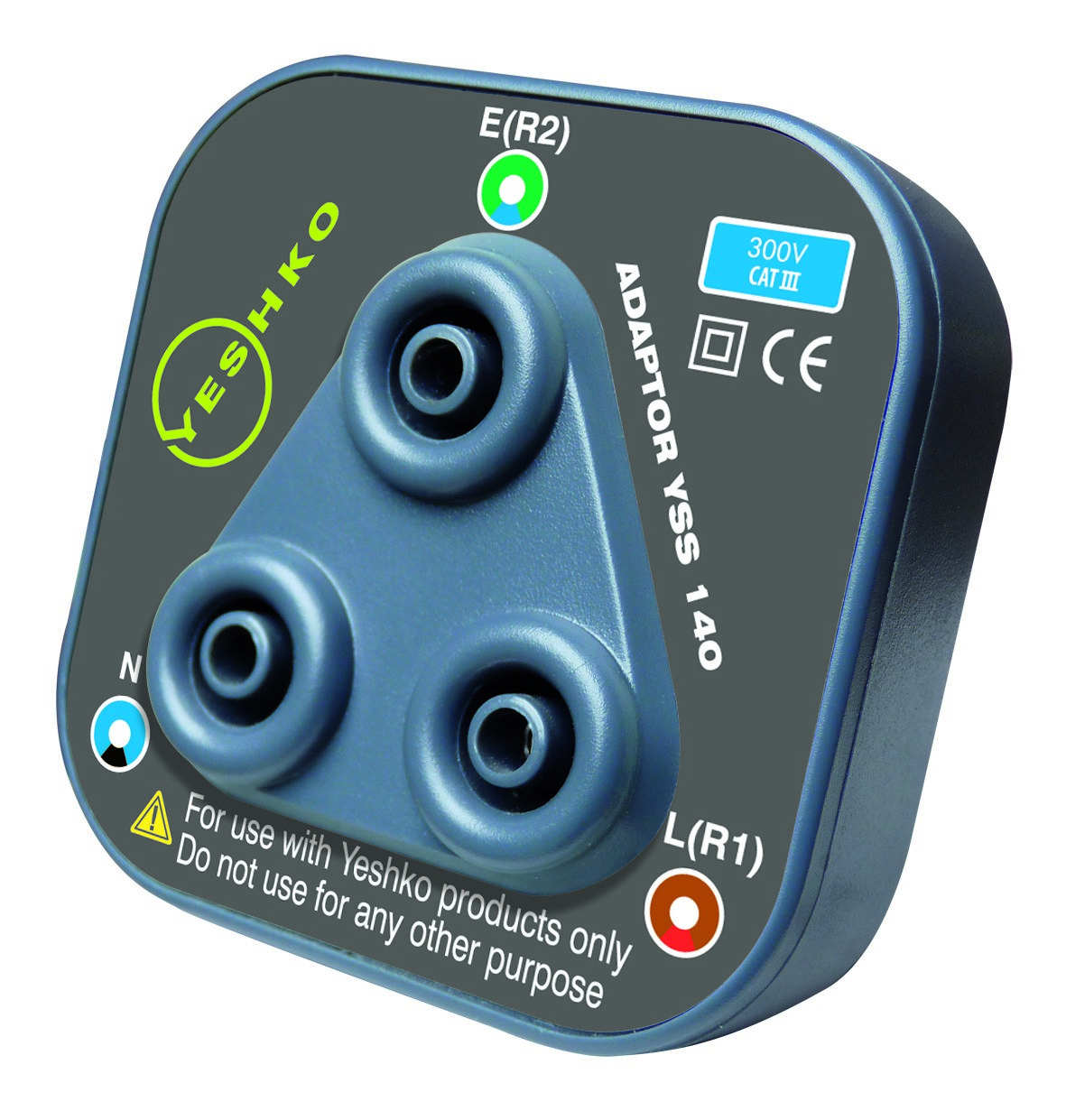

R2 ADAPTOR |
| Product Code: |
YSS 140 |
| Description: |
Saves having to remove sockets from the wall and potentially damage the decoration
Works with insulation continuity testers and multi-function testers that use 4mm connectors
|
| Category: |
|
| |
|
